SeaView SBP
The complete solution for processing and interpretation of sub-bottom profiler data.
The complete solution for processing and interpretation of sub-bottom profiler data.
Pick reflectors easily with the automatic tracker. Use correlated data such as cores, pipelines and more to enhance interpretation accuracy.
Compute common seismic attributes such as inst. phase, inst. frequency, derivative of envelope and more. Generate attribute maps quickly and easily to drive your interpretation workflow.
SeaView SBP features a rich batch processing and export system.
Manage large datasets (hundreds of GB) and interpretation databases (thousands of contacts) with ease.

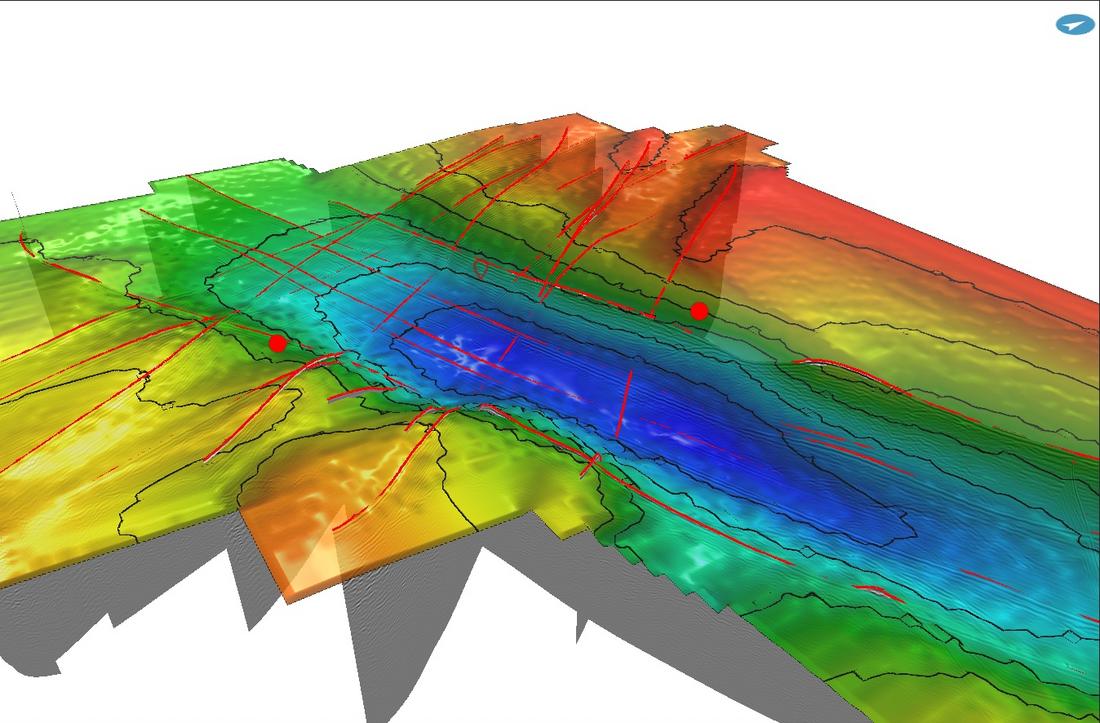

Display lines, interpretation, GIS objects, cores and pipelines in 3D.
Fully compatible with industry standards

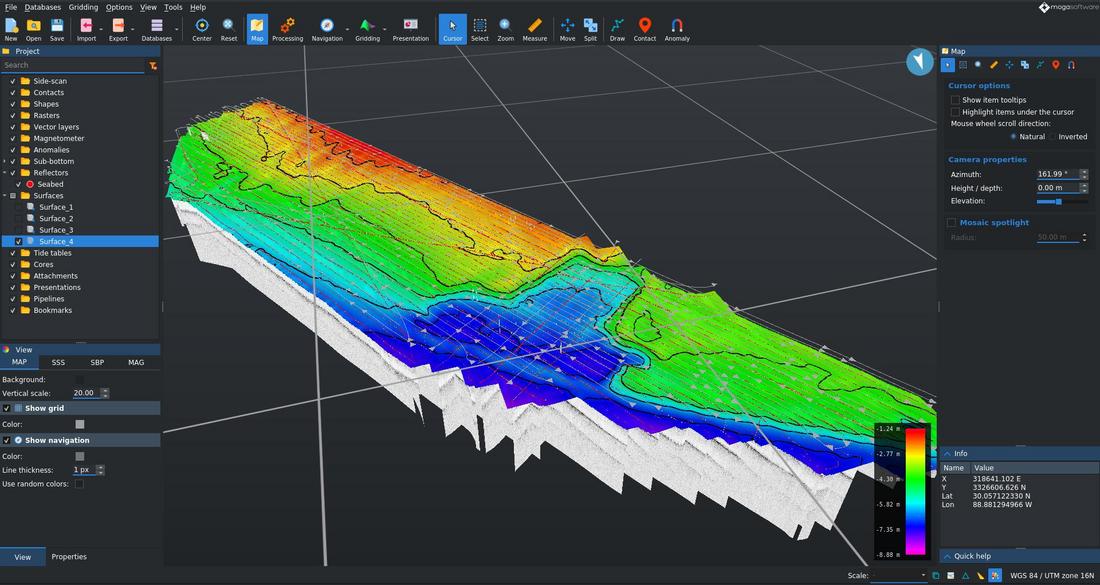

SeaView SBP enhances your interpretation with smart tools: view sub-bottom profiles, core logs and surfaces within the same 3D viewport.

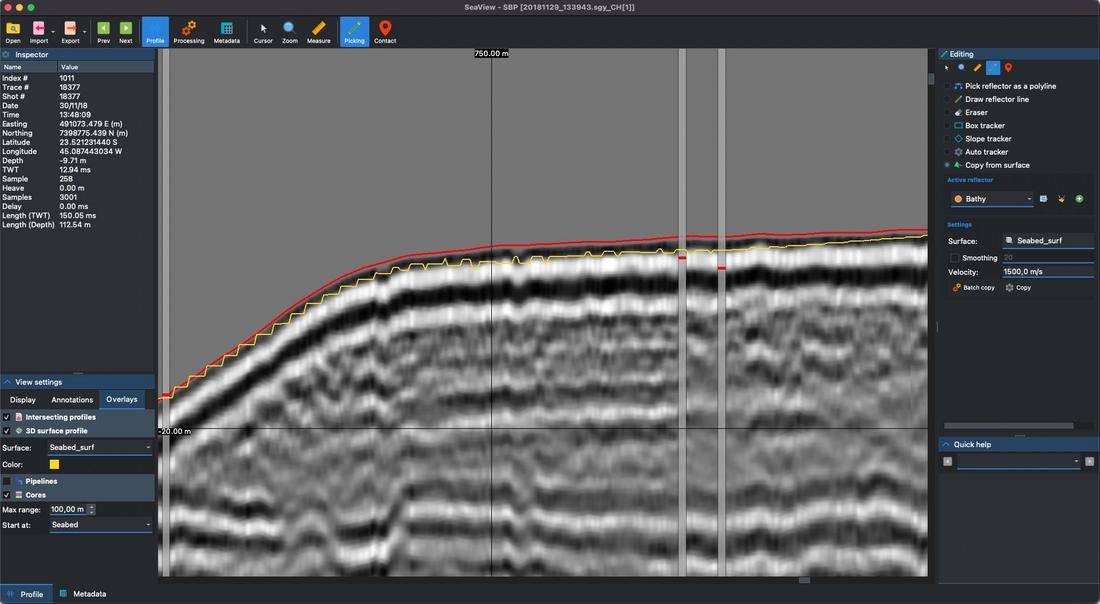

Extract interpretation from bathymetric surfaces automatically, perform static corrections and time-to-depth conversions.
Explore a wide set of gridding options to create surfaces from reflector picked on sub-bottom profiles, generate isopach maps and create grids from the interpolation of core log sections.
With SeaView SBP you can apply trace by trace vertical shifts using a variety of fast and precise processing modules
Apply automatic source depth correction to your datasets using a reference grid, even when depth sensor reading are not available.
All the traditional static correcitons modules are available, including heave, source depth, and tide compensation, swell filtering and flattening.
Moreover, SeaView SBP can perform time to depth conversion when needed.

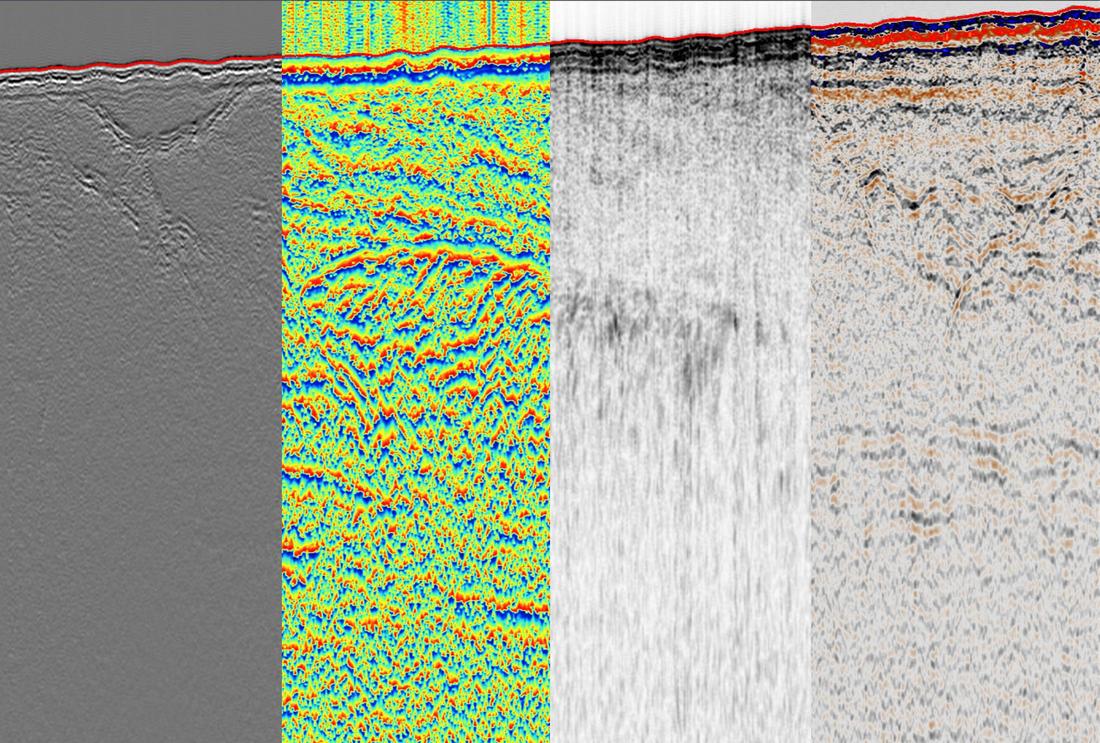

SeaView SBP supports full wave data formats. It can also compute and display common seismic attributes: instantaneous phase, instantaneous frequency, RMS amplitude, and more with special gridding options for the generation of 2D maps for every seismic attribute.
SeaView SBP stretches beyond the limits of standard sub-bottom processing, providing a full-blown solution for single channel seismic processing and interpretation.

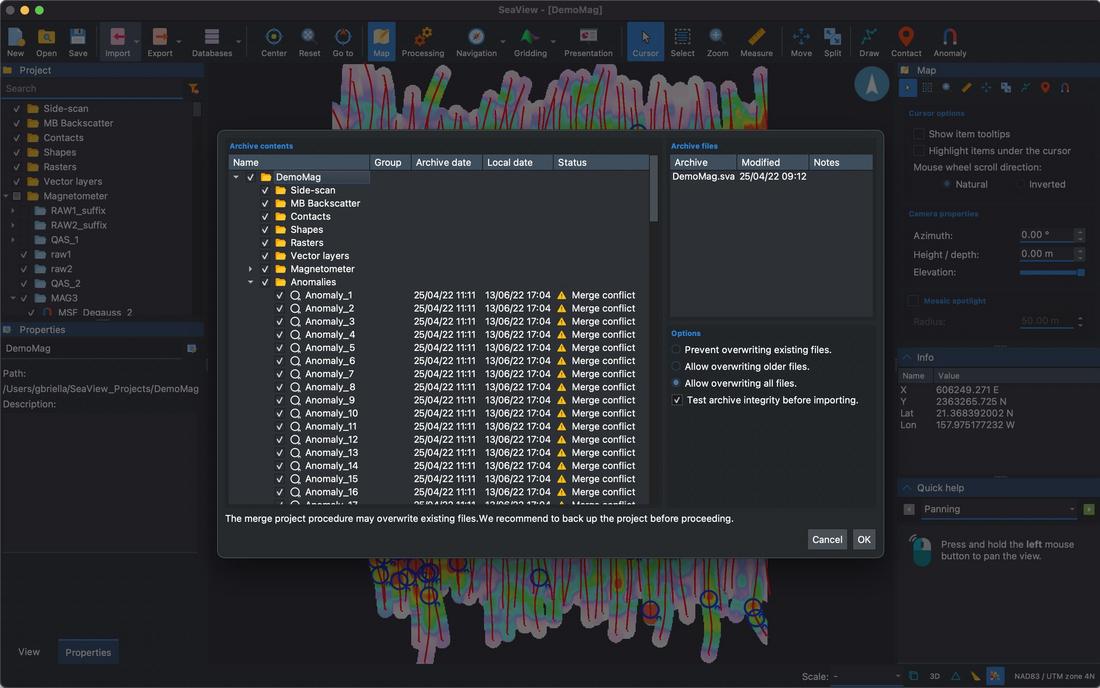

Provide daily updates to your client and onshore offices during operations with our incremental SeaView archives.
Internet speed won't be an issue anymore.
SeaView archives support AES-256 encryption for secure data transfers. Each file is also digitally signed to detect and prevent data corruption.

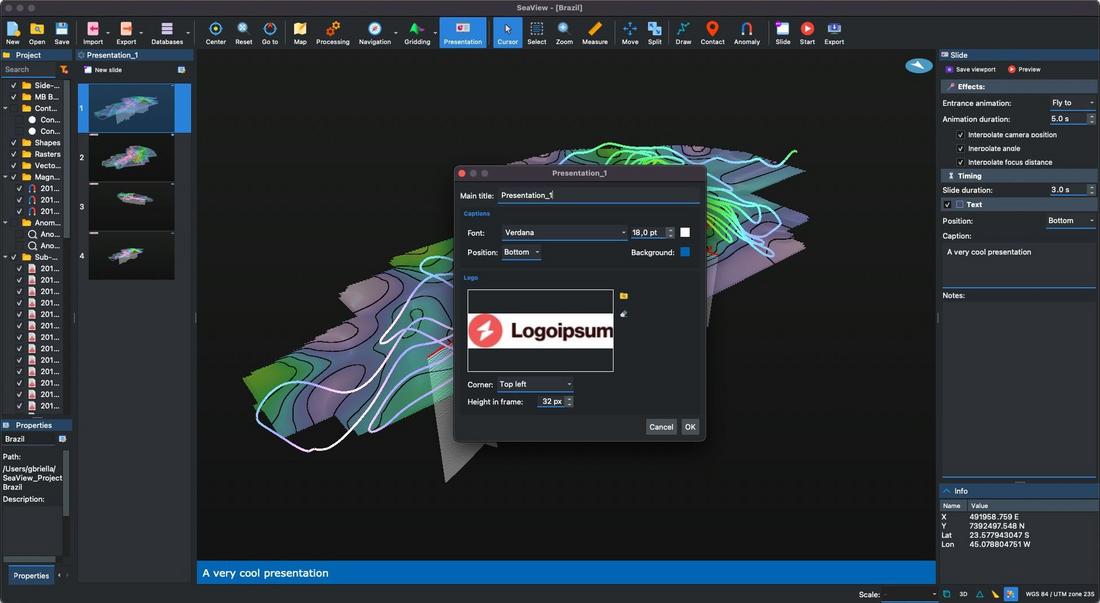

Create video presentations of your project with ease. Define keyframes, animations and captions with a few clicks.
Add your logo in video overlay to emphasize your corporate identity.
Play the presentation preview in SeaView or export it as a video in one click.
Learn more about the other modules in the SeaView suite or contact us for a free trial.
| Inputs | |
|---|---|
| SBP data | SEG-Y rev 0, 1 and 2; Triton XTF; Edgetech JSF (both envelope and full wave), Innomar SES-2000 and SES3 |
| GIS raster objects | GeoTIFF, KAP/BSB, NTF, GeoPackage, Arc/Info Binary and ASCII Grid, geo referenced PNG, JPG and WEBP and more |
| GIS vector objects | ESRI Shapefile, AutoCAD DXF, Google Earth KML/KMZ, GeoPackage, GPX, GeoJSON, CSV and more |
| Interpretation | User defined ASCII format (both TWT and depth supported) |
| Tide tables | Caris Tid, QINSy Regular Tide and User defined ASCII format |
| Core logs | User defined ASCII format (both one core per file or multiple cores per file) |
| Attachments | Geo-referenced document attachments for any file format |
| Outputs | |
| SBP data | SEG-Y rev 1, processed or RAW data |
| GIS raster objects | GeoTIFF, KAP/BSB, NTF, GeoPackage, Arc/Info Binary and ASCII Grid, geo referenced PNG, JPG and WEBP and more |
| GIS vector objects | ESRI Shapefile, AutoCAD DXF, Google Earth KML/KMZ, GeoPackage, GPX, GeoJSON, CSV and more |
| Interpretation | User defined ASCII format (both TWT and depth supported) |
| Grids | XYZ grids from reflectors and cores interpolated data |
| Navigation | Export processed navigation as GIS vector object |
| Profile images | Batch export profile images with annotations (reflectors, grid lines and contacts) |
| Contact report | Automatic contact report generation in PDF, with contact images preview, custom logo and page header/footer |
| Contact images | Batch export contact images with user defined annotations |
| Data management | |
| Backup and sharing | Share and backup your data projects with SeaView Archives |
| Processing | |
| Amplitude | AGC, static gain, user defined TVG, Envelope, DC removal, Normalizer, Trace equalization, Burst noise removal |
| Frequency | Low-pass, Band-pass, High-pass and time variant filters |
| Statics | Heave compensation, Source depth correction, Tide correction, Swell correction, Time to Depth conversion |
| Processing sequences | User defined processing sequences with unlimited operators |
| Default settings | Perform processing on data import with predefined settings |
| Import/Export settings | Share or backup your processing settings through simple files |
| Processing history | Unlimited processing history with undo / redo and metadata (date and time, workstation name, description) |
| Batch processing | Apply processing sequences in batch to some or all profiles in a project |
| Navigation | |
| Processing | Automatic correct navigation computation for each trace, smoothing, feathering compensation and GPS offsets |
| Manual editing | Interactive manual editing in 2D/3D view |
| Default settings | Perform navigation processing on data import with predefined settings |
| Import/Export settings | Share or backup your processing settings through simple files |
| Processing history | Unlimited processing history with undo / redo and metadata (date and time, workstation name, description) |
| Batch processing | Apply processing sequences in batch to some or all profiles in a project |
| Interpretation | |
| Automatic picking | Amplitude based automatic and semi-automatic trackers with window gates and smoothing |

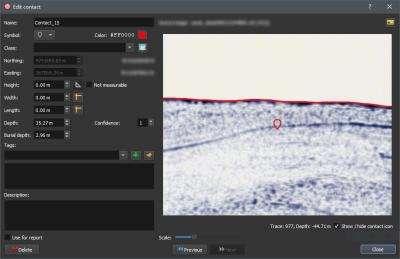

| Contact picking | Pick contacts in 2D profiles and compute burial depths automatically |
| Seismic attributes | Switch between amplitude, instantaneous phase or frequency, envelope and first derivative |
| Batch processing | Run automatic picking on multiple profiles in batch |
| Batch import | Import interpretation from text files |
| Bathymetry correlation | Extract interpretation from intersecting bathymetry. |
| 2D Display | |
| View options | Advanced 2D viewer with user defined scales, annotations, color palettes instant display gain and interactive zoom / pan controls |
| Overlays | Display cross-line intersections with interpretation, nearby core logs, intersecting pipelines |

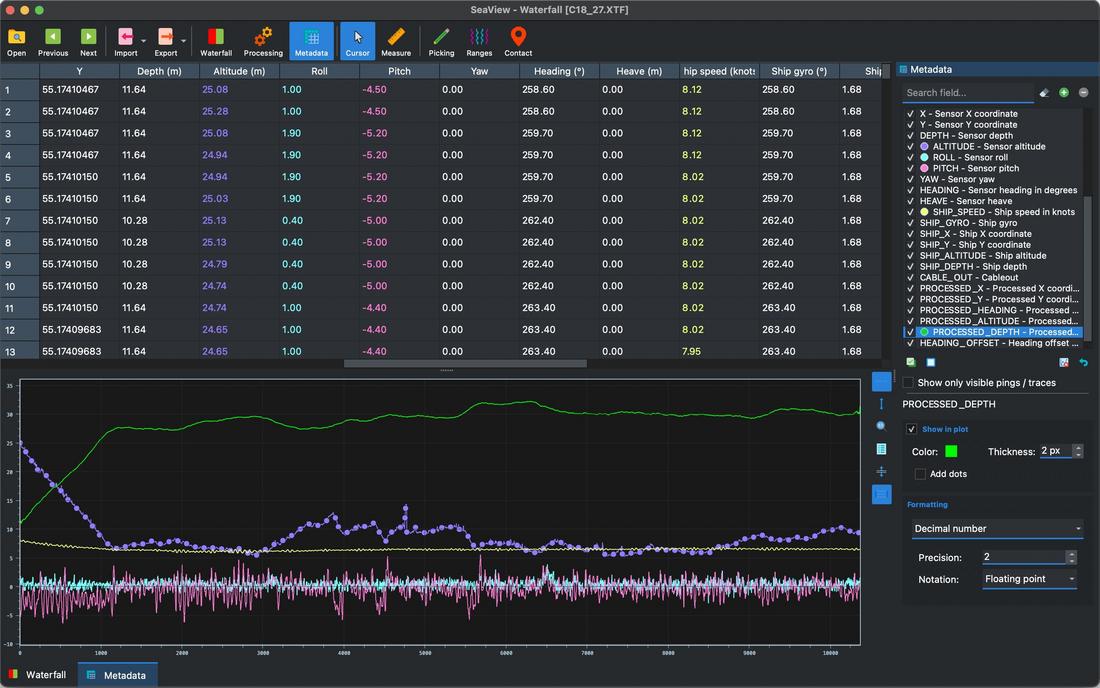

| QC plots | User defined plots from metadata |
| Tracking cursor | 2D and 3D tracking cursor with optional views syncrhonization |
| Measurement tool | Measure lengths and depths in different units (meters, feet, miles, etc) |
| 3D Display | |
| 3D overview | Display all the datasets in the project (including MOSAIC and MAG where present) |
| Interactive editing | Edit navigation, split datasets, edit visible ranges and depths |
| Interpretation | Pick contacts on profiles in the 3D view |
| Tracking cursor | 3D tracking cursor with optional views syncrhonization |
| Map tool tips | Show details of the object under the mouse cursor, including metadata |
| Measurement tool | Measure lengths and bearings in different units (meters, feet, miles, etc) |
| Bookmarks | User defined custom 3D views for easier navigation / presentation |
| Video presentations | Create animated videos with custom transitions and text overlays |
| System requirements | |
| Processor | 64 bit Intel CPU (or compatible), quad core, 2.5 GHz or faster. |
| RAM | 4 GB or more |
| Hard Disk | 2 GB free or more (SSD recommended) |
| Graphics card | GPU with at the least 2 GB of dedicated memory and compatible with OpenGL 4.1 or higher |
| Operating system | Windows 11 and Window 10 - Intel 64 bit, macOS High-Sierra or newer (both Intel and Apple Silicon supported), Linux 64 bit² |
| Licensing | |
| Virtual dongle | No physical dongle is required to run the software. |
| Cloud compatibility | Optional support for all major public cloud vendors² |
