SeaView eBOSS
Supercharged eBOSS data processing and interpreation.
Supercharged eBOSS data processing and interpreation.

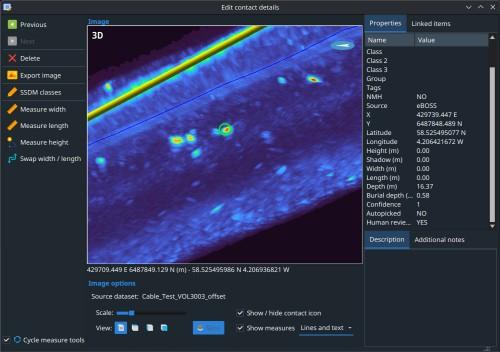

Pick buried contacts manually or automatically. SeaView eBOSS can automatically recognize boulder-like and cable-like features, compute dimensions and burial depths, with just a click.
Validate targets using co-located data from other sensors like magnetometers, sub-bottom profilers, and imaging sonars.

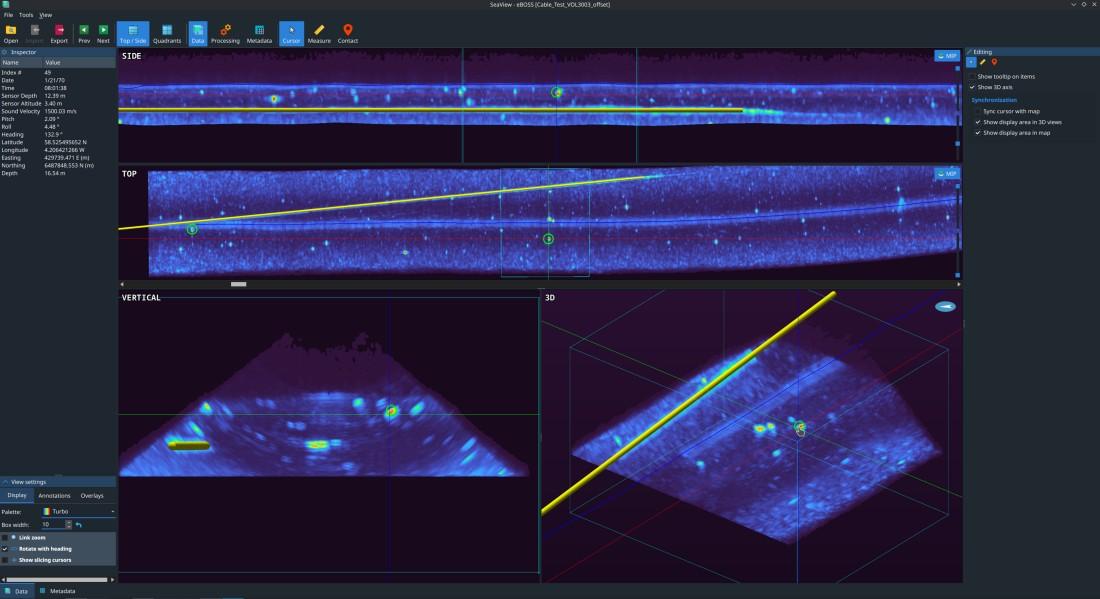

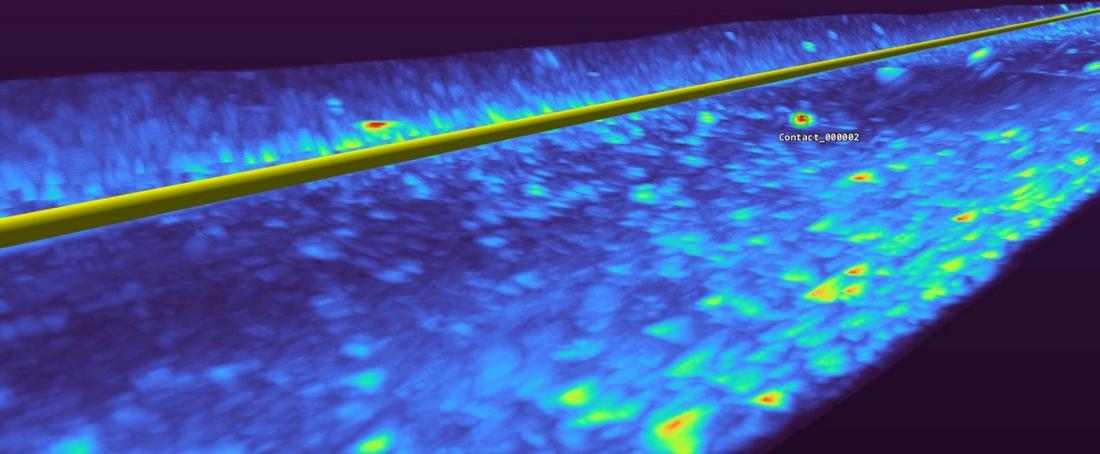

SeaView eBOSS features a custom real-time volume renderer optimized for Edgetech's eBOSS system.
Manage large datasets with ease. Merge and overlap multiple eBOSS volumes.
Display magnetometer lines, SBP profiles and interpretation, sonar data, GIS objects, pipelines, cables, and more, all seamlessly integrated with your eBOSS volume data.
Automatic picking tools recognize contacts in your volume data.

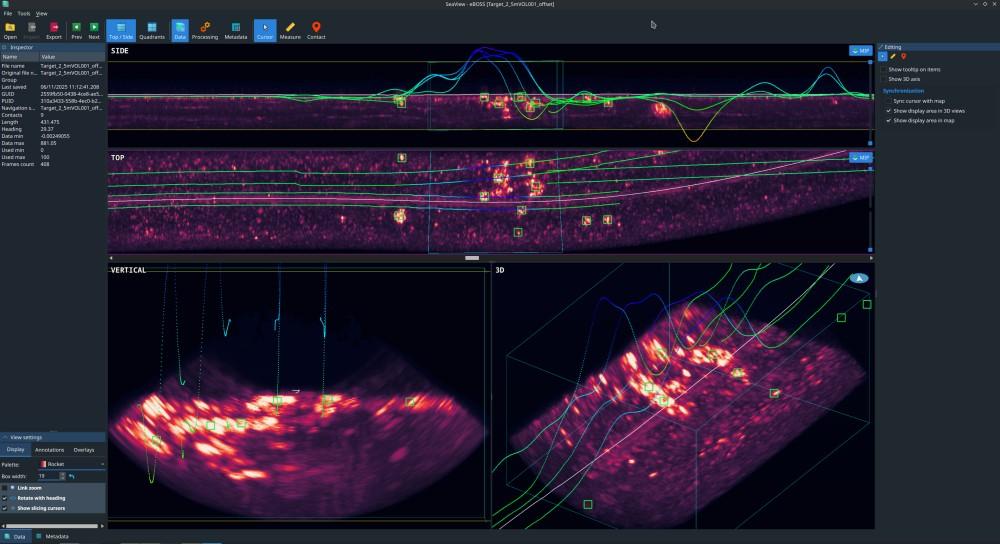

SeaView eBOSS enhances your interpretation with smart tools: view magnetometer profiles and grids, magnetic anomalies, sub-bottom profiles, core logs, surfaces within the same 3D viewport.
Volume data is co-located using precise georeferencing algorithms, ensure both performance and accuracy.
Provide daily updates to your client and onshore offices during operations with our incremental SeaView archives.
Internet speed won't be an issue anymore.
SeaView archives support AES-256 encryption for secure data transfers. Each file is also digitally signed to detect and prevent data corruption.
Create video presentations of your project with ease. Define keyframes, animations and captions with a few clicks.
Add your logo in video overlay to emphasize your corporate identity.
Play the presentation preview in SeaView or export it as a video in one click.
Learn more about the other modules in the SeaView suite or contact us for a free trial.
| Inputs | |
|---|---|
| eBOSS data | Edgetech JSF files. |
| GIS raster objects | GeoTIFF, KAP/BSB, NTF, GeoPackage, Arc/Info Binary and ASCII Grid, geo referenced PNG, JPG and WEBP and more |
| GIS vector objects | ESRI Shapefile, AutoCAD DXF, Google Earth KML/KMZ, GeoPackage, GPX, GeoJSON, CSV and more |
| Attachments | Geo-referenced document attachments for any file format |
| Outputs | |
| GIS raster objects | GeoTIFF, KAP/BSB, NTF, GeoPackage, Arc/Info Binary and ASCII Grid, geo referenced PNG, JPG and WEBP and more |
| GIS vector objects | ESRI Shapefile, AutoCAD DXF, Google Earth KML/KMZ, GeoPackage, GPX, GeoJSON, CSV and more |
| Navigation | Export processed navigation as GIS vector object |
| 3D images | Both 3D MIP and slice images are supported. |
| Contact report | Automatic contact report generation in PDF, with contact images preview, custom logo and page header/footer |
| Contact images | Batch export contact images with user defined annotations |
| Data management | |
| Backup and sharing | Share and backup your data projects with SeaView Archives |
| Navigation | |
| Processing | Automatic correct navigation computation for each volume slice, smoothing, and GPS offsets |
| Default settings | Perform navigation processing on data import with predefined settings |
| Import/Export settings | Share or backup your processing settings through simple files |
| Processing history | Unlimited processing history with undo / redo and metadata (date and time, workstation name, description) |
| Batch processing | Apply processing sequences in batch to some or all volumes in a project |
| Interpretation | |
| Automatic picking | Amplitude based automatic and semi-automatic trackers with window gates and smoothing |
| Contact picking | Pick contacts in 2D slices or 3D views and compute burial depths automatically |
| Batch processing | Run automatic picking on multiple volumes in batch |
| 3D Display | |
| 3D overview | Display all the datasets in the project (including MOSAIC, SBP and MAG where present, co-located with eBOSS data)¹ |
| Interpretation | Pick contacts on profiles in the any 3D view |
| Tracking cursor | 3D tracking cursor with optional views syncrhonization |
| Map tool tips | Show details of the object under the mouse cursor, including metadata |
| Measurement tool | Measure lengths and bearings in different units (meters, feet, miles, etc) |
| Bookmarks | User defined custom 3D views for easier navigation / presentation |
| Video presentations | Create animated videos with custom transitions and text overlays |
| System requirements | |
| Processor | 64 bit Intel CPU (or compatible), quad core, 2.5 GHz or faster. |
| RAM | 4 GB or more |
| Hard Disk | 2 GB free or more (SSD recommended) |
| Graphics card | GPU with at the least 4 GB of dedicated memory and compatible with OpenGL 4.1 or higher |
| Operating system | Windows 11 and Window 10 - Intel 64 bit, macOS High-Sierra or newer (both Intel and Apple Silicon supported), Linux 64 bit² |
| Licensing | |
| Virtual dongle | No physical dongle is required to run the software. |
| Cloud compatibility | Optional support for all major public cloud vendors³ |
Notes
